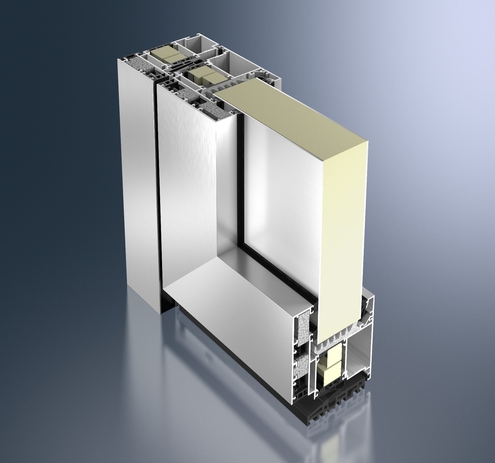

Schuco Door ADS 112.IC

Schüco is facing up to the thermal insulation challenges of the future with the Schüco ADS 112.IC door

The highly thermally insulated Schüco ADS 112.IC door system is setting new standards in energy efficiency for aluminium doors, and is perfectly complemented by the passive house-certified Schüco AWS 112.IC window. Based on the inward-opening version of the door with a 90 mm basic depth, an additional insulation level provides optimised thermal insulation to passive house standard. This makes thermal insulation values for aluminium doors of Uf = 1.0 W/(m²K) and Ud = 0.8 W/(m²K) easy to achieve for the Schüco ADS 112.IC door. In addition to optimised energy efficiency, the tried-and-tested mechanical and energy-efficient system features of the Schüco ADS 90.SI door have been systematically applied to the Schüco ADS 112.IC door system. The Schüco ADS 112.IC door system is therefore particularly suitable for use in luxury homes.

Product benefits
Consistent implementation of the design principles to achieve the passive house standard
Optimum thermal insulation with Uf values down to 1.0 W/(m²K) and Ud values down to 0.8 W/(m²K)
Fixing the cover profile without thermal bridging for optimum thermal insulation
Leaf height of up to 2,500 mm and leaf widths of up to 1,400 mm
System enhancement to passive house-certified aluminium window Schüco AWS 112.IC
Use of a continuous centre gasket increases watertightness
Material              Aluminium
Type of construction     Highly thermally insulated
Doors
Inward opening doors  Single leaf
Double leaf
with toplight/sidelight
Entrance lobbies
Door thresholds              Easy access combination threshold made from aluminium
Security
Burglar resistance DIN V ENV 1627 to 1630          WK 2
Infill panels
Fittings series
Further tests
Air permeability DIN EN 12207  Class 4
Weathertightness DIN EN 12208              7A
Resistance to wind load DIN EN 12210   C3
Thermal transmittance DIN EN 12412-2 Uf =0,8-1,9W/(m2K)
Drive fitting system

Dimensions / weights
Max. width        1400 mm
Max. height       2500 mm
Max. vent weight           160 kg
