Schüco Door ADS 70 HD

The large doors from the Schüco Door ADS HD (Heavy Duty) system can be used as a striking feature. They endow every building with a specific character. For public buildings in particular, Schüco door systems offer large opening widths and durability in the event of heavy use.

Product benefits
Particularly robust and durable
Ideally suited to busy entrances and exits
Security class up to WK3
Comfortable clearance heights up to 3000 mm
Max. leaf weight: 200 kg
Straightforward use of different types of fitting

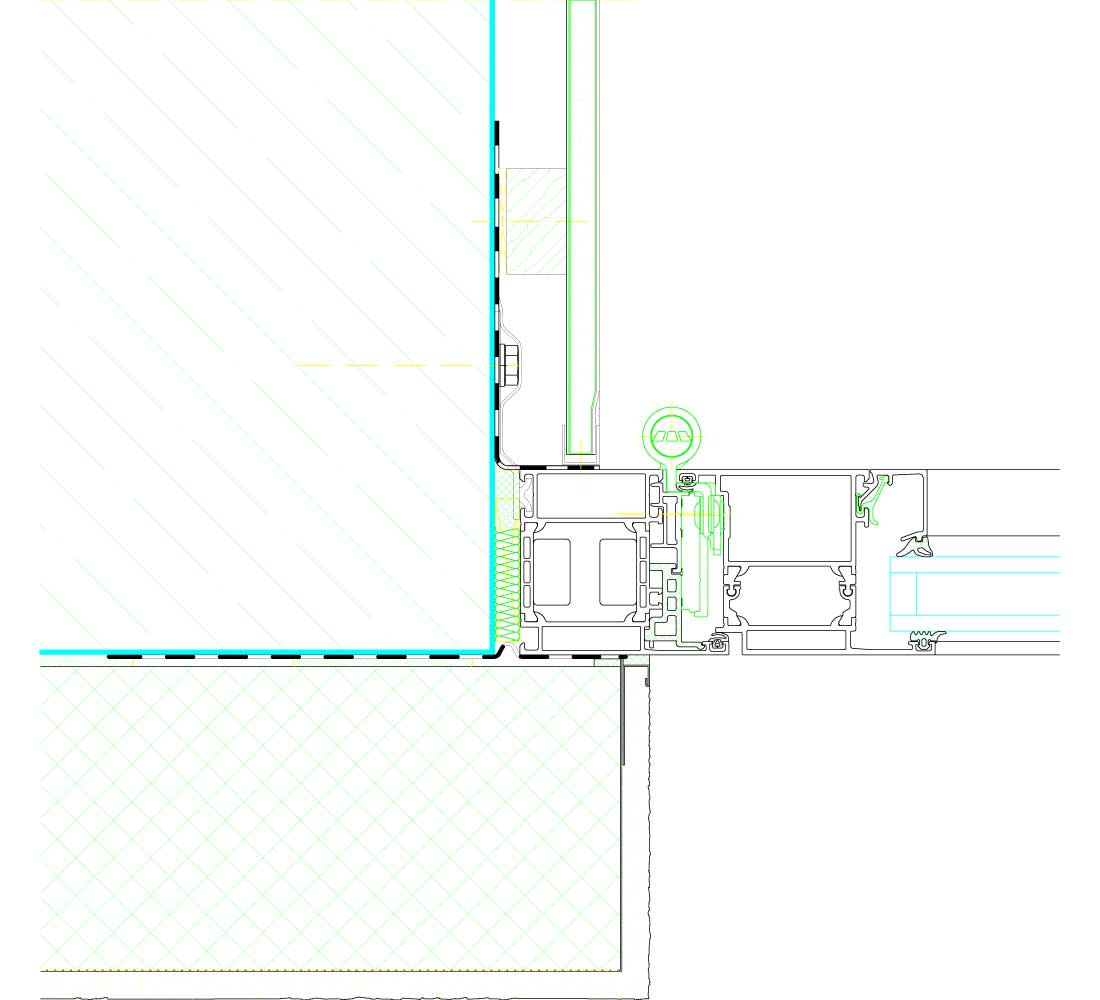

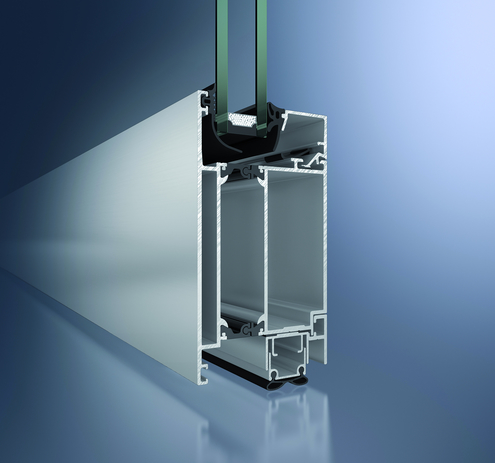

Schüco ADS 70 HD, highly thermally insulated aluminium door system
With 70 mm basic depth, for particularly heavy and oversized leaves subject to high continuous loading.

Design features:
Internal and external flush-fitted door constructions with 5 mm shadow joint on both sides; with 11 mm shadow joint for double-leaf panic doors.
The thermal breaking split insulating bars are fitted with foam insulation for high thermal insulation.
The door leaf profiles are fitted with thermal breaking split insulating bars.
The door leaves must have a four-sided mitre-cut leaf profile.
The system must be fitted with square glazing beads.
For increased thermal insulation, glazing gaskets with fins must be used.

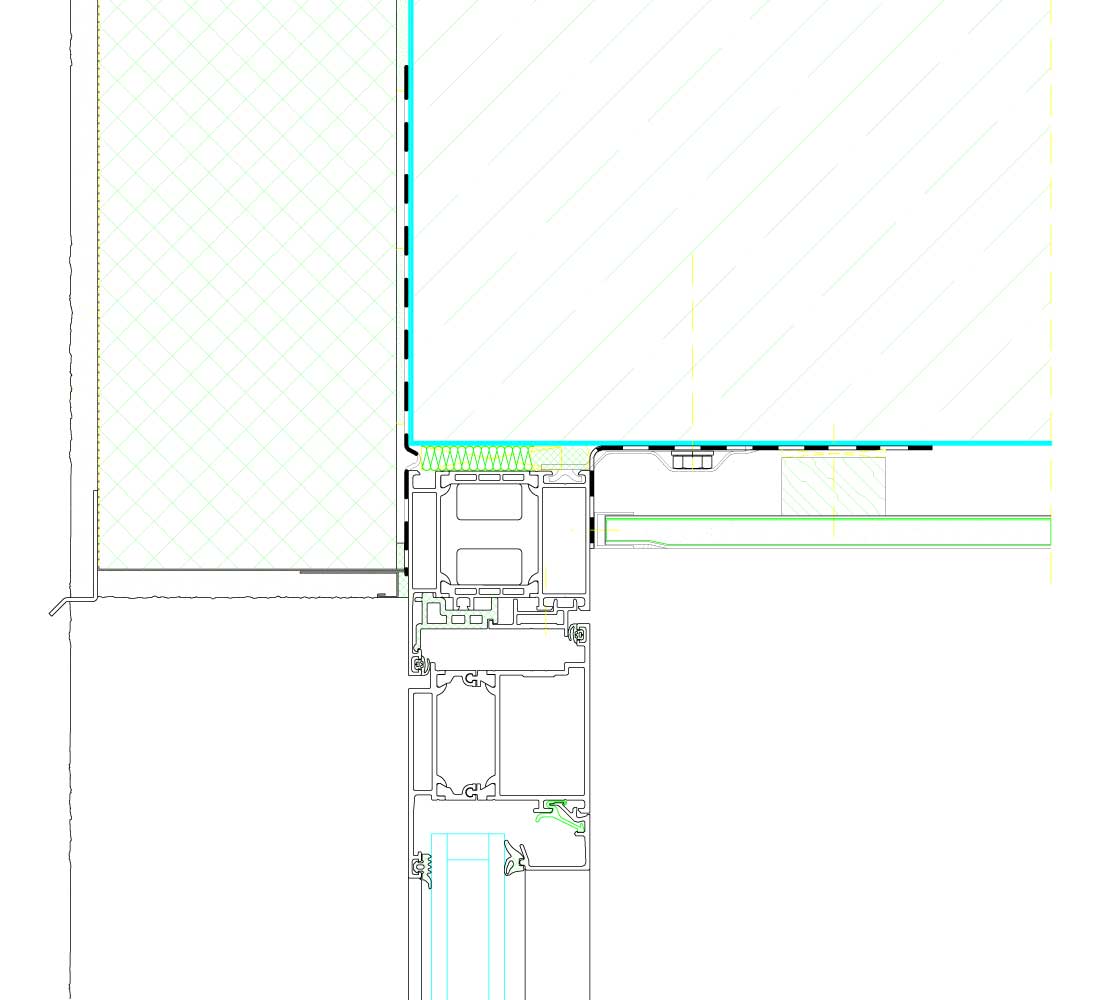

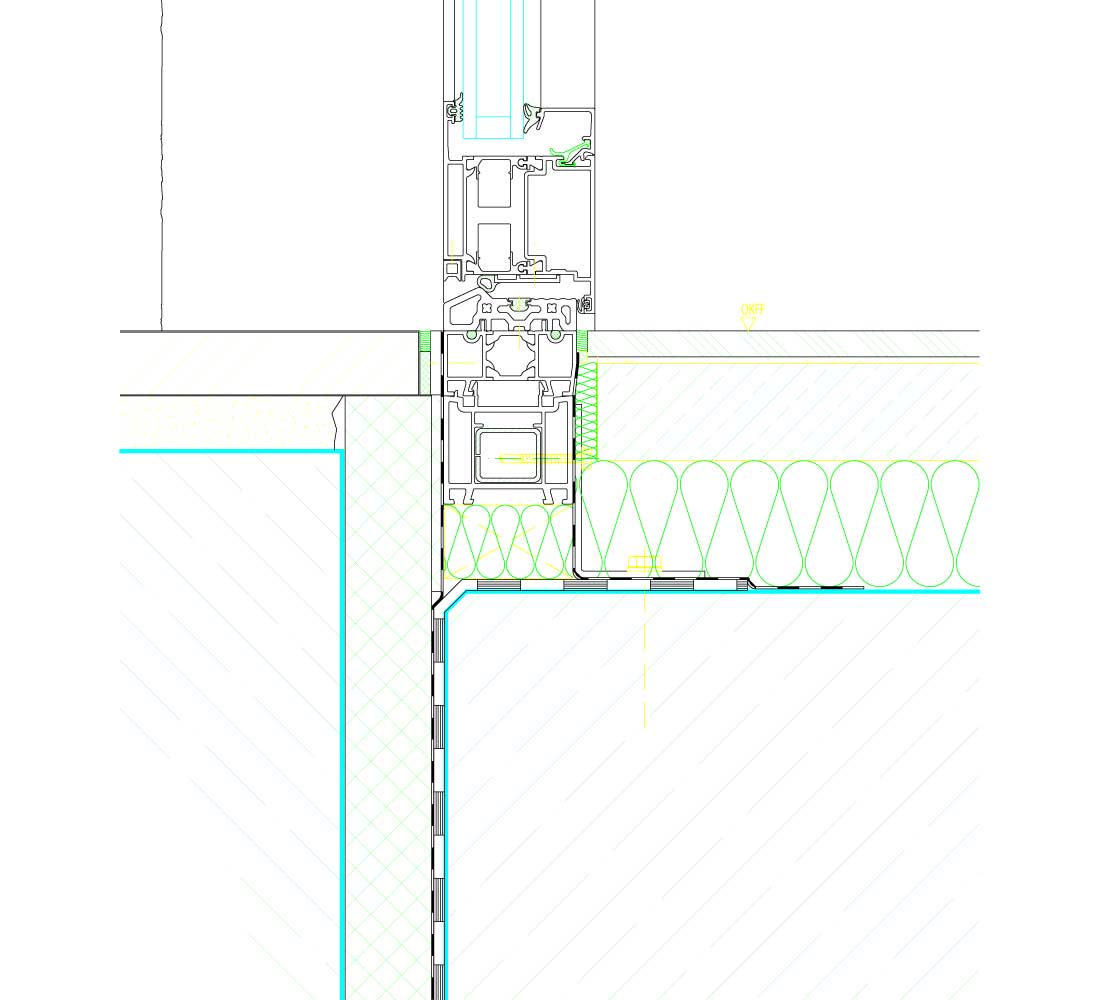

If there are no other requirements specified for the sill by standards / guidelines / local building regulations, the bottom door sill must be fitted with an aluminium/plastic rebate threshold, height 20 mm, and a gasket system for sealing at a test pressure of up to 150 PA in accordance with DIN EN 12208.



Profile basic depths:
Outer frame, mullion, transom 70 mm
Leaf frame (door), flush-fitted 70 mm

Profile face widths:
Outer frame / sill, bottom 106 mm
Outer frame, side and top 79 mm
Mullion 94 mm
Transom 94 mm
Inward-opening leaf frame,
flush-fitted inside and outside,
continuous 73 mm
Outward-opening leaf frame,
flush-fitted inside and outside,
continuous 98 mm
