ASS 77 PD.SI

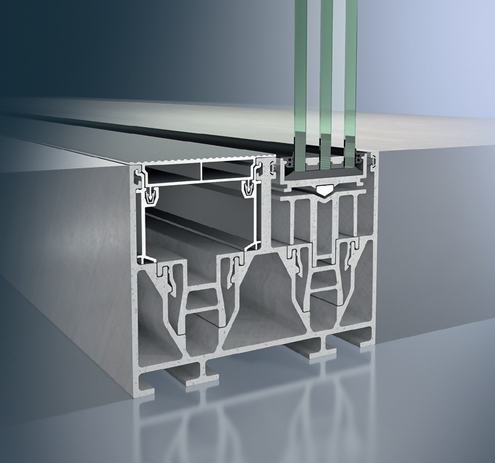

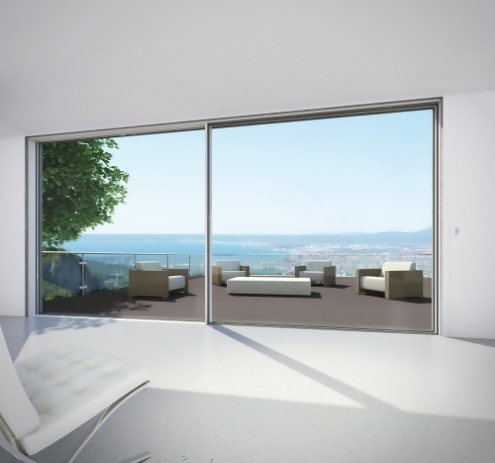

The highly thermally insulated Schüco ASS 77 PD.SI sliding system provides large-area sliding units with maximum transparency. Using new, state-of-the-art materials and coating technology means unrivalled thermal insulation

The flush-fitted installation ensures very easy-access A double track outer frame provides different opening types.
Product benefits
Thermal insulation: from Uw = 0.84 W/(m²K)

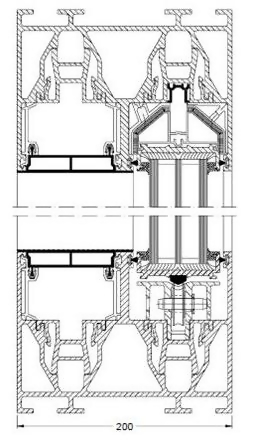

Face widths from just 30 mm in the centre section and a concealed outer frame provide maximum transparency and light penetration
Fast, quiet and convenient opening and closing at the touch of a button with an offset control panel
Innovative track solution for vent weight of up to 500 kg
Wide choice for greater design freedom
Security class RC 2 (WK2)
